Tecsun PL-368 AM-SSB korte golf radio

Tecsun
pl368
    Levertijd:Direct
Bestel
  • Beschrijving

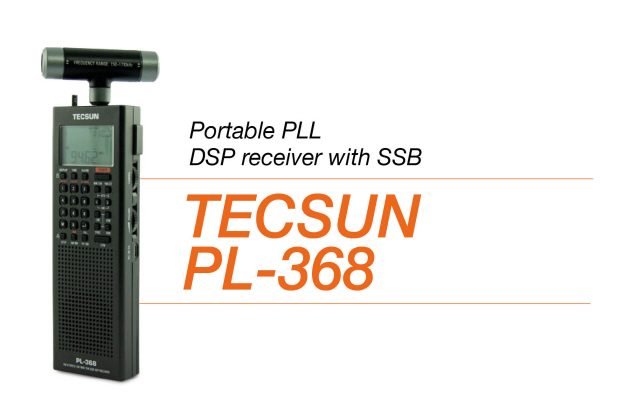

TECSUN PL-368 is a portable PLL DSP multiband receiver with SSB and Synchronous Detection. It offers Tecsun’s new ETM+ feature which gives the possibility of setting up time-specific memories for longwave, medium wave (AM) and shortwave.

Its vertical design is reminiscent of the PL-360 and PL-365, but now also offers a keypad for more convenient direct frequency selection. However, unlike its predecessors that use 3 x AA-sized batteries, the PL-368 is powered by 1 x BL-5C lithium battery. The battery can be charged by connecting the radio to a 5V USB charger (not included), one similar to those used for most smartphones and tablets.

Special Features:

  • Synchronous detection & SSB
  • SSB (USB / LSB) fine tuning steps at 10 Hz
  • ETM+
  • Antenna socket (3.5mm) for MW / LW
  • AM bandwidth settings:
  • LW/MW: 2.5, 3.5, and 9.0 kHz
  • SW: 2.5, 3.5, 5.0 kHz
  • SSB: 0.5, 1.2, 2.2, 3.0 and 4.0 kHz

Frequency Range:

  • FM:    64 – 108 MHz

Four settings:

  • 64.0 – 108 MHz
  • 76.0 – 108 MHz
  • 87.0 – 108 MHz
  • 88.0 – 108 MHz
  • Tuning steps of 100 kHz
  • Fine tuning steps of 10 kHz
  • MW:  520 – 1710 kHzTwo settings:
  • 522 – 1620 kHz (tuning steps of 9 kHz)
  • 520 – 1710 kHz (tuning steps 10 kHz)
  • Tuning steps of 9 kHz or 10 kHz
  • Fine tuning steps of 1 kHz
  • LW:   153 kHz to 513 kHz
  • Tuning steps of 9 kHz
  • Fine tuning steps of 1 kHz
  • SW:   1711 kHz to 29999 kHz / 1621 to 29999 kHz
  • Tuning steps of 5 kHz
  • Fine tuning steps of 1 kHz

Tuning Methods:

  • Direct keypad entry
  • Auto scan
  • Manual dial tuning

Storing Stations Methods:

  • Manually: Tune into a station using the knob and then store them
  • Storing stations during auto-scan
  • Auto Tuning Storage (ATS): Automatically tune and store stations
  • (Recall stations by browsing the memory manually or by auto-scan)
  • Enhanced Tuning Mode (ETM+): Create time-specific memories for LW/MW/SW

Basic Features:

  • Multi-functional Digital Display shows:
  • Meter band & frequency
  • Memory location
  • Signal indicator: S/N ratio and strength
  • Clock & Alarm (24-hour format)
  • Battery indicator
  • Temperature (Celsius or Fahrenheit)
  • 850 stations storage locations
  • FM stereo / mono selection
  • Alarm by radio
  • Snooze function – 5 minutes
  • Sleep timer from 1 – 120 minutes
  • LCD backlight (auto-on for 5 seconds or always-off)
  • Keylock function
  • Antenna socket (3.5mm) for LW / MW
  • Earphone jack (3.5 mm; 1/8 inch; 32Ω)
  • Speaker (16Ω, 0.5W)
  • Built-in Charging System to charge lithium (Li-ion) rechargeable battery
  • Battery Power: BL-5C lithium (Li-ion) battery
  • Charging: DC 5V / 500mA
  • Unit size 162 x 53 x 26 mm (W x H x D)

Specifications:

Sensitivity:

  • FM (S / N = 30dB) < 3uV
  • MW (S / N = 26dB) < 1mV/m
  • LW (S / N = 26dB) < 10mV/m
  • SW (S / N = 26dB) < 20uV

Selectivity:

  • FM > 60dB
  • MW / LW > 60dB
  • SW > 60dB

SYNC lock range: +/- 1kHz

  • AM: 45 kHz
  • FM: 128kHz
  • FM Stereo Crosstalk: 35dB
  • Output Power: Approx. 350mW

Package Contents
Tecsun PL-368 comes with Tecsun stereo earphones, MW/LW external antenna, USB charging cable, Tecsun carrying pouch and an English manual.
